Pokit PRO

Descripción

Meet Pokit PRO

Pokit Pro is an all-in-one multimeter, oscilloscope and logger with unprecedented portability, accuracy and versatility. Free yourself from the bench and take your creativity to new places!

Pokit Pro connects seamlessly to the smartphone app to measure a wid

Leer más
 Muestra el tiempo necesario para asegurar más producto del que hay en stock.

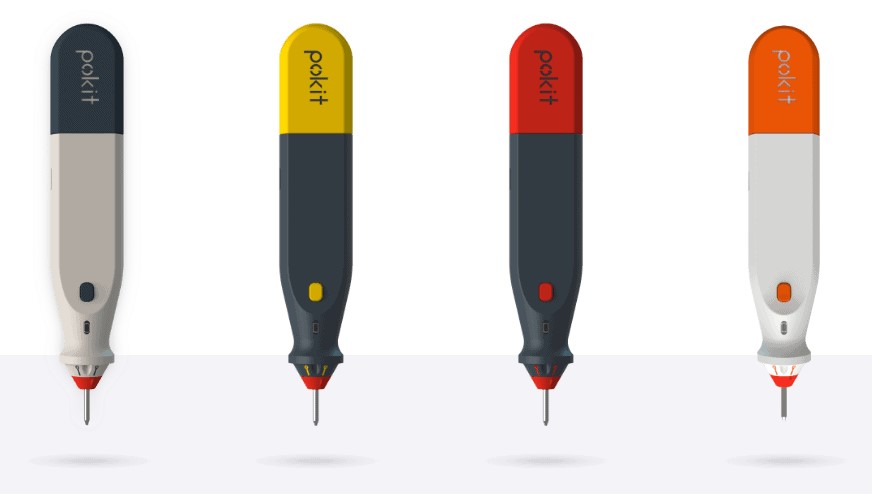

Código Color Peso [g] Estado de stock Precio
PRO-SLT

Slate - Gray

78
2 piezas  i
 Siguiente
almacenamiento
$276.91($276.91 sin IVA)
PRO-ORG

Orange - Gray

78
4 piezas  i
 Siguiente
almacenamiento
$276.91($276.91 sin IVA)
PRO-RED

Red - Slate

78
3 piezas  i
 Siguiente
almacenamiento
$276.91($276.91 sin IVA)
PRO-YEL

Yellow - Slate

79
4 piezas  i
 Siguiente
almacenamiento
$276.91($276.91 sin IVA)

Meet Pokit PRO

Pokit Pro is an all-in-one multimeter, oscilloscope and logger with unprecedented portability, accuracy and versatility. Free yourself from the bench and take your creativity to new places!

Pokit Pro connects seamlessly to the smartphone app to measure a wide range of parameters. These include voltage, current, resistance, capacitance and temperature. It also provides continuity and diode checking.

Building on the success of Pokit Meter with many feature enhancements, Pokit Pro is ideal for electronics, automotive applications, home electrical and much more.

Full-featured 600V, CATIII, 10A Multimeter

Multichannel Digital Storage Oscilloscope

Stand-alone Data Logger

Wireless Phone Connectivity

Compact & Portable

Full-Featured Multimeter

The app brings all your favourite measurement modes into one seamless display. No lead reconfiguration, no knobs. Perfect for use in the home or on the go!

Connect up to four Pokit Pro devices to view different measurements simultaneously, such as voltage and current.

True RMS measurement

Auto ranging

Voltage: 1mV to 600V DC/AC (True RMS), ±1%

Current: 1uA to 10A max, ±1%

Resistance: 100m to 1M Ohm, ±1%, 3M Ohm ±5%

Capacitance: 1nF to 1000μF, ±2%

Ambient temperature: 0°C to 60°C, ±1%

NTC Temperature Probe (Sold Separately): -40 to 120°C ±1% @25°C + 0.05%/°C

Continuity and diode polarity checker

Multichannel Digital Storage

Oscilloscope

An oscilloscope that small? Never before has this much power and freedom been brought to your finger tips in the realm of electronic test equipment.

Pokit Pro’s oscilloscope allows you to capture and display voltage and current waveforms in real-time.

It also supports multichannel functionality. Connect up to four Pokit Pro devices and display signals simultaneously.

Sampling: 1Msample/sec, 12-bit

Voltage: 1mV to 600V DC/AC (RMS), ±1%

Current: 1uA to 10A AC(RMS)/DC max, ±1%

1mS to 10s acquistion window

Auto trigger or adjustable rising/falling trigger level

Digital Fourier Analysis

Switch into DFT mode to view your waveforms in the frequency domain. Use Pokit Pro as a spectrum analyser with real-time spectrum analysis and max/min hold functions.

Sampling: 1Msample/sec, 12-bit

Voltage: 1mV to 600V DC/AC (RMS), ±1%

Current: 1uA to 10A AC(RMS)/DC max, ±1%

Monitor Parameters Long Term

Pokit Pro functions as a stand-alone data logger. It logs temperature, voltage or current waveforms for up to six months, without a connection to a phone. Simply hook up your Pokit and walk away!

12-bit sampling

Voltage: 1mV to 600V DC/AC (RMS), ±1%

Current: 1uA to 10A AC(RMS)/DC max, ±1%

1 to 14000 points memory

Up to 6 months logging

THE POKIT PRO APP

Find-my-pokit function

Can’t find your Pokit? Use the find-my-pokit function to keep track of all your devices and have peace of mind.

This function locates your Pokit Pro using signal strength, and flashes the device to help identify it among others. Pokit Pro can also beep to ensure ease of location.

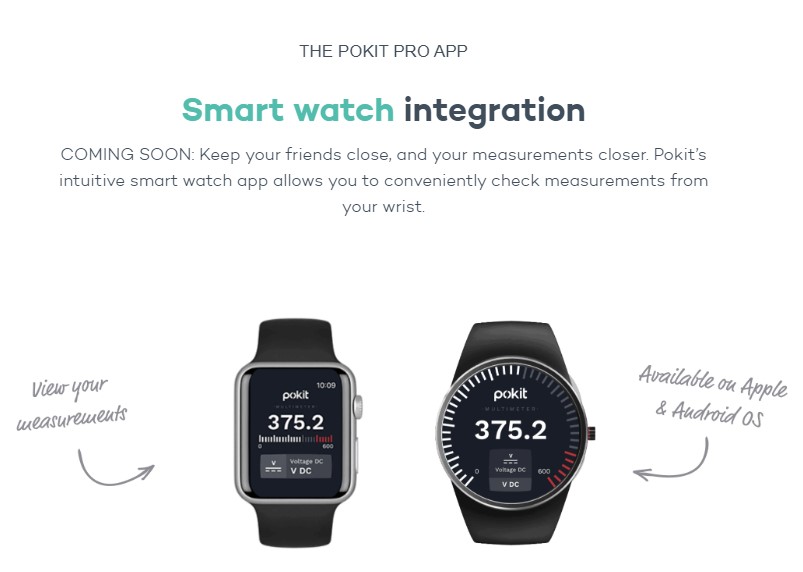

Smart watch integration

COMING SOON: Keep your friends close, and your measurements closer. Pokit’s intuitive smart watch app allows you to conveniently check measurements from your wrist.

Scope measurement functions:

Freq., Period, PP, RMS, AVG, Duty

Get the most out of the Pokit Pro oscilloscope with its advanced features: frequency, period, peak-peak, max and min measurements, average, duty, and RMS.

Enhanced multimeter functions

Say goodbye to recording measurements with pen and paper. Pokit allows you to log measurements with a screen tap, and share them to the web instantly.

Don’t have a hand free? No problem – just use the button on the Pokit Pro to activate HOLD, LOG and use torch functions.

Manual calibration

Pokit Pro comes pre-calibrated from the factory. It also provides a manual calibration mode, enabling you to check and modify calibrations to meet compliance requirements.

Channel light indicator

Customise your indicator colour to identify probes and multichannel traces.

Integrated torch

Illuminate your work with the integrated torch.

Feature Summary

Physical

Ultra-Compact Design

Storable Probe & Lead

Integrated Torch

Customizable RGB Light Indicator

Attachable Probe Clips

Probe Tip Cover

USB-C

Functional/Electrical

600V, CAT III, 10A

Wireless Connectivity

Full Featured Multimeter

Full Featured DSO

Standalone Logger

Spectrum Analyzer Mode

Voltage, Current & Temperature

Waveforms

Replaceable Fuse

Rechargeable Battery

Continuous Acquisition

UI/App

Setup Wizard

Intuitive Touch Interface

Easy Pinch & Drag to Pan & Zoom

Hide & Reveal Optional Controls

Measurement Cursors

Forced & One-Time Adjustable Triggers

Captured Data Export & Sharing

iOS & Android

Specifications

Voltage Measurement  .....  1mV to 600V DC, 600V AC (True RMS), CAT III, ±1%

Current Measurement  .....  1uA to 10A AC (True RMS)/DC max, ±1%

Resistance Measurement  .....  100m to 1M Ohm, ±1%, 3M Ohm ±5%

Temperature  .....  0°C to 60°C ±1%°C, 32°F to 140°F ±1.8°F (External Temperature is only measurable with the Pokit Pro NTC Temperature Probe)

External Temperature*  .....  -40 to 120°C ±1% @25°C + 0.05%/°C

Diode Check  .....  0V to 1V

Capacitance  .....  1nF to 1000μF, ±2%

Continuity Check  .....

Continuity Check Delay (max)  .....  100ms

Continuity Buzzer  .....  Internal Buzzer

True RMS  .....

Multichannel**  .....  Simultaneously display up to 4 measurements/channels using 4 Pokit Pro devices

Oscilloscope

Voltage Measurement  .....  1mV to 600V DC, 600V AC (RMS), CAT III, ±1%

Current Measurement  .....  1uA to 10A AC(RMS)/DC max, ±1%

Sampling  .....  12bit, 1M sample/sec

Input Impedance (DC)  .....  10M Ohm

Acquisition Button  .....

One-Time Acquisition  .....

Continuous Sampling  .....

Trigger  .....

Multichannel**  .....

Channel Naming  .....

RGB Channel Identification  .....

Waveform Name/Save/Export  .....

Digital Fourier Transform (DFT)  .....

Logger  .....

Logged Parameters  .....  Voltage, Current, Temperature

Logging  .....  28kB, 20min/sample @ 6 months

Sample Rate  .....  500ms to 24hr

Other Functions

Device Personal Naming  .....

Torch  .....

Replaceable Fuse  .....

Battery  .....  Rechargeable (USB-C)

Battery Life (Paired)  .....  128kB, 2hr/sample @ 6 months

USB Rechargeable  .....

Battery Gauge  .....  Flat Only

Locator  .....  Device Locator

Connectivity

BLE  .....  v5.0

iOS  .....  v9.0 or later

Android  .....  v5.0 or later

Open APIs  .....

Compliance  .....

EMC  .....  CE, FCC, RCM, MiC

Electrical Safety  .....  IEC61010

Physical

Form  .....  Pen Style

Retractable Leads  .....  N/A

Storable Leads  .....

Dimensions  .....  170mm x 30mm x 23mm, 6.7” x 1.2” x 0.91″

Operating Temperature  .....  -10˚C to 40˚C, 14˚F to 104˚F

Lead Span (max tip-to-tip)  .....  800mm, 31.5”

Probe Tip Length  .....  13mm, 0.51”

Weight  .....  78g, 2.75oz

Accessories

Attachable Probe Clips  .....

Carry Pouch  .....  Hard Case
