Guying ring for tubular mast

Description

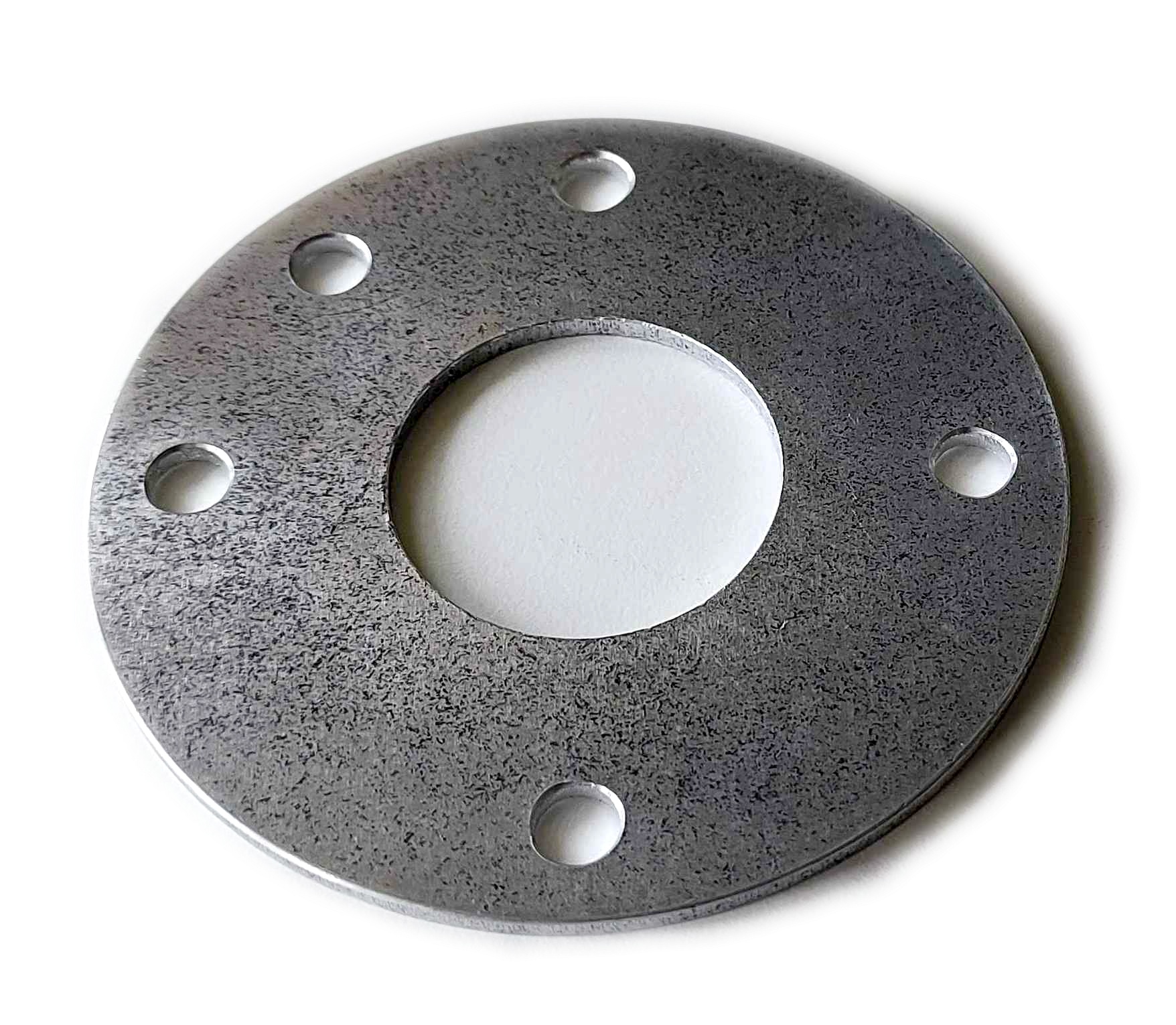

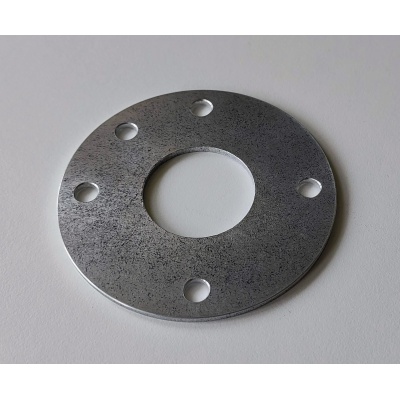

The ring is suitable for attaching guying ropes to a tubular mast or antenna. The holes for the ropes (around the perimeter) are 8 mm (5/16”) in diameter and have shrunk edges so that the Mastrant ropes can be tied directly without the risk of cutting them.

Thickness 3 mm (1/8”), outer diameter 100

Read more
 Displays the time required to get more goods than it is in stock.
Code Size Weight [kg] In Stock Price
AGR122

22 mm

0.06
141 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR128

28 mm

0.06
81 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR131

31 mm

0.06
56 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR134

34 mm

0.06
131 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR137

37 mm

0.06
44 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR140

40 mm

0.06
80 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)
AGR143

43 mm

0.06
63 pcs  i
 Next
shipment
$7.40($7.40 ex.VAT)

The ring is suitable for attaching guying ropes to a tubular mast or antenna. The holes for the ropes (around the perimeter) are 8 mm (5/16”) in diameter and have shrunk edges so that the Mastrant ropes can be tied directly without the risk of cutting them.

Thickness 3 mm (1/8”), outer diameter 100 mm (4"), distance of the holes from the edge 6 mm (1/2").

Made from AW5754 aluminium alloy which is very strong and has excellent corrosion resistance (including seawater and industrially polluted atmospheres). Surface finish by sanding.

Diameters of centre holes:

mm inch
22 7/8
28 1-1/8
31 1-1/4
34 1-5/16
37 1-7/16
40 1-9/16
43 1-11/16
