Pokit meter


pokit2

Pokit is the world's smallest integrated multimeter, Digital Storage Oscilloscope and logger.

meassuring

Measure Anything

Pokit measures, displays and logs a wide range of parameters including voltage, current, resistance and temperature. It also provides a continuity and diode checker. Pokit is intended for low voltage work up to audio frequencies.

pokit keys mobil

Measure Anywhere

Pokit fits on your keychain! With leads that retract at the press of a button, Pokit is convenient and small enough to take anywhere!

pokit mobil

Measure with Ease

Pokit connects wirelessly to your smartphone and app. Its amazingly easy to use. Simply touch to change modes and settings, and pinch and drag to pan and zoom waveforms. After using Pokit you'll wonder why all tools weren't designed this way!



MULTIMETER

The worlds smallest multimeter.

Pokit is a full-featured Multimeter that accurately measures AC/DC voltage, AC/DC current, resistance and ambient temperature. It also includes a continuity and diode checker. Measurements are displayed directly on your smartphone in real-time. Simply touch to select a measurement mode.

pokit screen multimeter

Specification

  • True RMS measurement
  • Auto ranging
  • Voltage: 10mV to 60V DC, 42V AC (RMS), +-1%
  • Voltage with optional HV probes: to 240V DC
  • Current: 1mA to 2Amax, +-1%
  • Resistance: 1 to 1M Ohm, +-5%
  • Ambient temperature: 1 to 60° C,+-1° C
  • Continuity and Diode polarity checker

DIGITAL STORAGE OSCILLOSCOPE

The world's most compact oscilloscope.

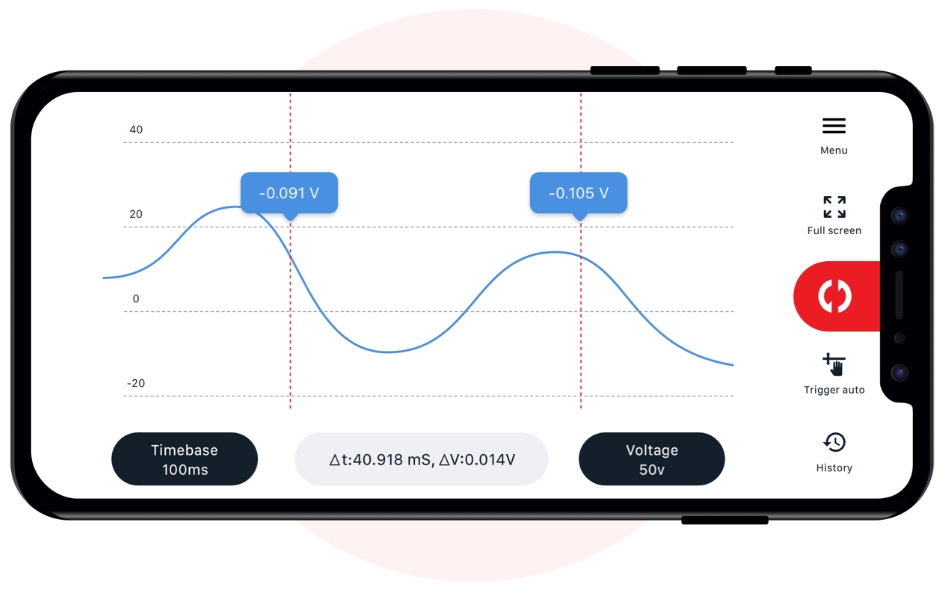

Pokit DSO captures detailed voltage and current waveforms for display on your smartphone. It also allows you to operate on the frequency domain using FFT, and use it as a spectrum analyser. Simply pinch and drag to set the acquisition voltage scale and time base, and touch to select a trigger mode.
Captured waveforms are displayed in stunning detail. Pinch and drag to zoom and pan. Longpress on the graph to set cursors and trace your signals.

pokit screen oscSpecification

  • 1MSamples/sec, 14-bit sampling
  • Voltage: 10mV to 60V DC, 42V AC (RMS), +-1%
  • Current: 1mA to 2Amax, +-1%
  • 10ms to 10s acquisition window
  • Auto trigger or adjustable rising/falling trigger level



DATA LOGGER

Monitor parameters long term

Pokit functions as a stand-alone data logger that logs temperature, voltage or current waveforms for periods up to 6 months without connection to a phone. Waveforms can be uploaded to your phone for display.

pokit loggerSpecification

  • 14-bit sampling
  • Voltage: 10mV to 60V DC, 42V AC (RMS), +-1%
  • Current: 1mA to 2Amax, +-1%
  • 1 to 8000 points memory
  • Up to 6 months logging

THE POKIT APP

Transform your mobile phone into an awesome tool.

pokit with welcomescreen

The Pokit App is available for Android and iPhone.

Features

  • High-resolution data display
  • Touch to select modes and settings
  • Pinch and drag to zoom and pan waveforms
  • Monitor connectivity and battery status



What's in the BOX

pokit packaging1 x Zip Lock Pouch

1 x Pokit Meter

2 x Detachable Wire Clips

1 x Battery

2 x 2A Fuses

DESIGN

State-of-the-art electronics in an innovative design

Hardware features include...

Pokit HardwareFeatures

  • Highly miniaturized electronics
  • Wireless phone connectivity
  • Powered by a replaceable Lithium cell
  • Ultra-low power with a long battery life
  • Super handy retractable leads





Option - 240VAC Probes

240VAC Detachable probe set

pokit 240vdc probes
